PRODUCT

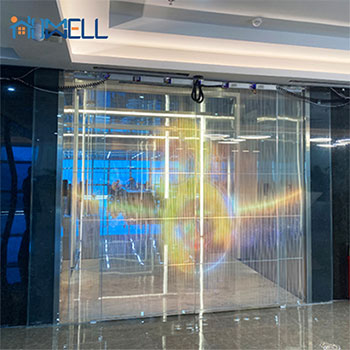

transparent LED display
Brand Name: HOMEWELL
Application: Indoor,Outdoor,Semi-outdoor
Panel Size: 111mm,222mm,333mm...
Function: SDK
Specification: Stretch bar,Digital Poster,Video Wall...
LED chip: SMD1812
Brightness: 5000nits
Waterproof: IP65
LevelColor: Transaprent
Pixel Pitch: 5.5*11/11*11/11*22/22*22
Media Available: Datasheet,Photo,Other
Use: Advertising publish,retail store,shopping mall,etc
Pixels: 5/6/8/10mm
Screen Material: Tempered Glass
Screen Size: 32 inch,80 inch,75 inch,86 inch,50 inch,65 inch,43inch,etc
Life span: 100000 Hrs
Warranty: 1 Years
| Brand | HOMEWELL |
| Pixel Pitch(mm) | 5.5*11/11*11/11*22/22*22 |
| Screen Brightness | 0-5000 |
| Gray Scale | 256 |
| Drive Way | High Speed 1 Scan |
| Operating Voltage | +5V DC |
| Screen Material | Tempered Glass |
| Operating Temperature | -20-55℃ |
| Storage Temperature | -40-80℃ |
| Working Humidity | 10-90% |
| Storage Humidity | 5-95% |
1. The TLD series adopts 2020GGB magic lantern beads, and is composed of unit modules
2. Any size LED display can be formed by splicing modules;
3. The light transmittance exceeds 80%, which does not affect indoor wind collection;
4. Wide voltage input power supply: AC90-264V 50/60Hz;
5. Support multiple file formats: display text, image, video and other screens;
6. Support mobile phone, computer file WIFI, 5G remote transmission;
7. The whole machine provides a 3-year quality guarantee;
8. Widely used in glass curtain wall, quantitative lighting, advertising media, space decora- tion, partition decoration, home design, commercial display, functional signage;
1. Data transmission: According to the serial port or industrial Ethernet interface data, read the corresponding text, picture, video, and display the corresponding content.
2. Data update: Modify the display text, picture, video function through the serial port or industrial Ethernet interface.
3. Set parameters: The function of setting the display parameters through the serial port or industrial Ethernet interface; including: grayscale, color, brightness, display speed, screen split and merge, etc.
4. Storage function:Store display information, communication information, fault information, etc.
5. Read function:Read video transmission progress, store device content, send device data information, etc.
6. Power-on self-check function.
1. Do not hit the glass;
2. Pay special attention to the right angles, not to be impacted;
3. The brightness should not exceed 25% during debugging;
4. Ensure that the power supply is reliably grounded;
5. The power input line must not be heated or deformed during use;
6. Support audio output (the player comes with AUX3.5 interface, just connect the speaker)
7. The video signal line and power line between the transparent LED display must be connected during installation, otherwise it will be reworked;
8. For the setting of the play box, please refer to "Mobile APP Play Box Setting Instructions"
