PRODUCT
Black Smart Film for Car Window Tint
Product Attributes :
Brand Name: HOMEWELL
Product Name: Black Smart Film for Car Window Tint
Warranty: 5 years
Function:Decorative, Explosion-proof, Heat Insulation, UNTI-UV, privacyprotection,heat insulation,explosion proof,decorative
Material: PDLC
Thickness: 0.44mm
Standard width:≤14cm/14-18cm
Length:customize
Working voltage:12V-30V
Power consumption:≤5W/㎡
Lifetime:>10 years
Product Description
Product introduction

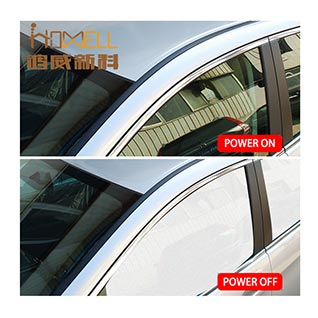

Intlight electric smart film is a kind of film that add liquid crystal polymer composite material in the middle of two transparent conductive film , in the absence of an electric field, the electric smart film isin an opaque state; when the alternating current passes through, the liquid crystal molecules can achieve an orderly arrangement, and the film changes from opaque state (OFF state) to transparent state (ON state). Through the electric field, the electric smart film can quickly switch from the open state to OFF state, and from the OFF state → open state.
| Brand | Homewell |
| Feature | Feature |
| Function | privacy protection,heat insulation,explosion proof,decorative |
| Thickness | 0.44mm |
| Standard width | ≤14cm/14-18cm |
| Length | customize |
| Working voltage | AC48V~65V/50Hz |
| Power consumption | ≤5W/㎡ |
| Lifetime | >80000h |
| Design Style | Modern |
Working Principle
arrangement state, when parallel light passes through the polymer and irradiate to the liquid crystal material, because of refractive index of the liquid crystal droplets is lower than the other outer polymers, light in the surface of liquid crystal droplets is diffused and scattered .the whole film becomes opaque, appears frosted. When energized, two PET-ITO conductive film functions as planar electrodes, which makes the liquid crystal droplets orderly arranged perpendicular to the film surface, whereby the parallel light passes through the liquid crystal layer without being reflected and refracted , and light transmits to whole film, and smart film appears transparent.
Electric smart film consists of two layers of PET-ITO conductive film and the intermediate liquid crystal film. Wherein the liquid crystal film mainly consists of liquid crystal droplets and outer layer of high polymer. When the power is off, the liquid crystal droplets are in disordered
Notes:
Product specification : Size can be customized, Standard roll size :1.52m*30.5m; Packing:drum inside,paper carton outside; the wire and electrodes can be installed according to customers’ requirements.
Product features
1. the privacy(privacy protection function is the most important feature of the electric smart film , you can always control the state of opaque and transparent of the glass )
2. the projection function (the smart film can not only control the light , but also be a very good projection hard screen, and the projection function is very outstanding)
3. security ( with all the advantages of safety glass, including the security feature to prevent flying glass after broken, and good performance of anti-strike strength, sound insulation, heat insulation, UV blocking)
4. environment friendly (the electric smart film can block out 99% of ultraviolet and infrared, to protect the indoor equipment from fading and aging because of radiation and protects persons from skin disease because of ultraviolet radiation )
