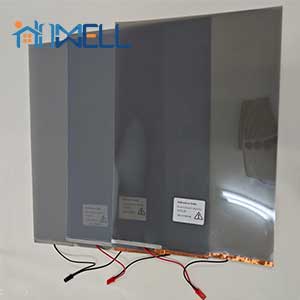

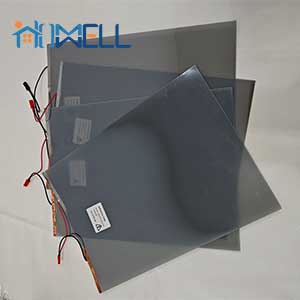

pdlc smart film
pdlc smart film

pdlc smart film

Product Attributes :

Product Attributes :Brand Name: Homewell

Product Name: Smart Film Switchable

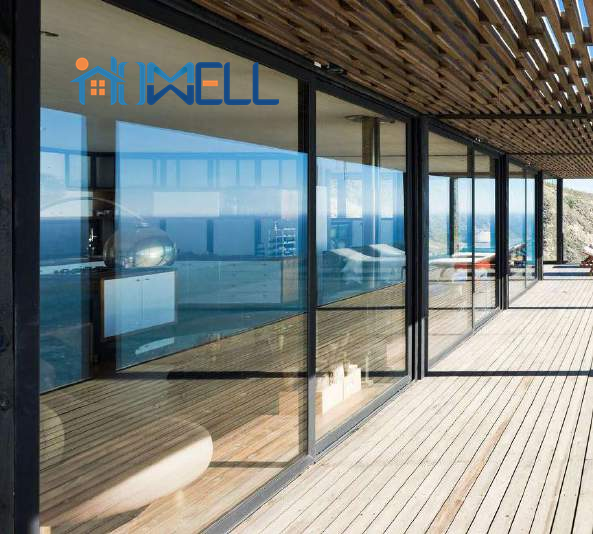

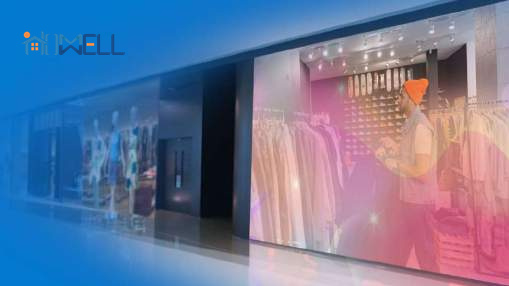

Application:Hotel, Villa, Office Building, Hospital, School, Supermarket, Workshop

Function:Decorative Glass, privacy protection,heat insulation,explosion proof,decorative

Technique:Clear Glass, Tempered Glass, Smart Glass

Material:PDLC

Feature:self-adhesive

Thickness:0.44mm

Standard width:≤14cm/14-18cm

Length:customize

Working voltage:AC48V~65V/50Hz

Power consumption:≤5W/㎡

Lifetime:>80000h



Product Description

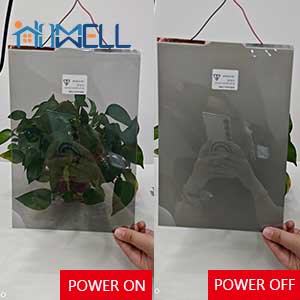

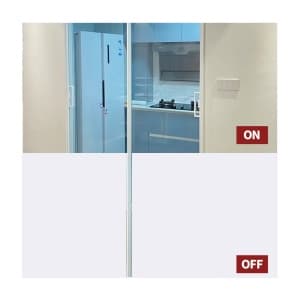

(1)Opaque statue of STG

 STG is composed of two transparent  ITO film sandwiched between a layer of plastic and liquid crystal. The plastic and liquid crystal include a liquid crystal ball and a polymer, and the liquid molecule director is approximately parallel to the glass substrate , the polymer is surrounded by the liquid crystal micro droplet, the refractive index of the polymer is np ,  which is similar to the refractive index of the glass. Approximately 1.5 , an is isotropic substance, the unusual refractive index and the ordinary refractive index of liquid crystals are ne and n, respectively. When the vertically incident visible light passes through the glass and transparent ITO film ,it enters the liquid crystal sphere and the scattering occurs and the STG is atomized.

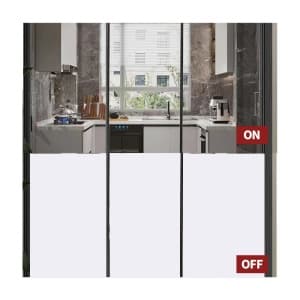

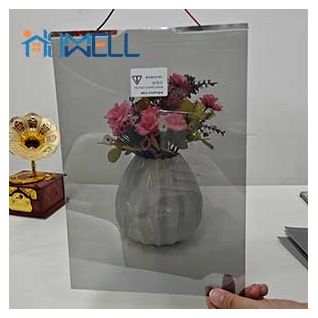

(2)Transparent STG

When the external electric field is applied, the electric field is formed between the two transparent ITO films, and the liquid crystal molecules are arranged in the direction of the electric field. When the vertically incident visible light passes through the glass and the transparent ITO film, it is incident to the interface between the liquid crystal sphere and the polymer. Because the no direction is perpendicular to the direction of light propagation and no is equal to np, the glass is transparent.

(3)STG haze

The main indicator of the advantages and disadvantages of STG glass optical performance is transparency. In fact, it is the haze. The smaller thaze when energized, the better haze when the power is cut off. When the external electric field is applied, the light is perpendicular to the direction of the transparent conductive film. When incident, although nLC is approximately equal to no, However, due to the difference between the nP and no values, scattering still occurs at the interface between liquid crystal droplets and polymers. This is the main reason for the haze.

Items
Thickness Total thickness (without protective film) 0.47mm
PDLC 03.8mm
AB glue 90μm
PE protective film 35μm
PET release film 50μm
Sheet Width 1000,1200,1500,1800(mm)
Length According to customer requirements
Roll Width 1020,1220,1520,1850(mm)
Length ≤ 50m/Roll
Roll tube Inner Diameter
